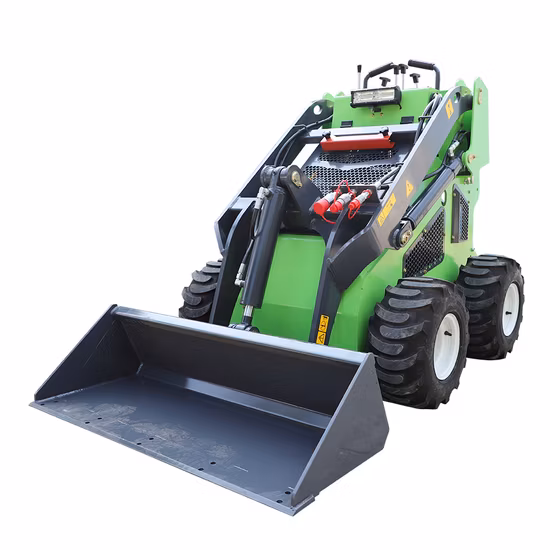

China Loaders Manufacturer Construction Machinery Small Wheel Mini Skid Steer Loader CE/ISO
Overview Package Size 2980.00cm * 960.00cm * 1950.00cm Package Gross Weight 1300.000kg Product Description DIG-DOG WHEEL
Overview
Detailed Photos
STAND ON MINI SKID STEER LOADERSCustomized AttachmentsAttachment function introduction 1,Material loading and unloading attachments (fork shovel, standard bucket, combination shovel, sieve shovel) 2,Municipal attachments (angled sweepers, closed sweepers, crushing hammers, vibratory compactors, milling machines, trenchers, snow pushers, snow throwers, ice breakers, vibratory ice breakers) 3,Construction attachments (excavators, mixers, disk trenchers, digging arms, bulldozers) 4,Logistics attachments (holding forks, tandem bars, soft pack clamps, crane hooks, side shifting forklifts) 5,Gardening and agricultural attachments (grass forks, tree removers, graders, lawn mowers, rototillers, augers)
Packaging & ShippingAbout UsDIG-DOG, Dig the world!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that
you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG have our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine. FAQ
7-30 days after receiving the deposit.
Basic Info.
Model NO. | WSL30 |
Condition | New |
Rated Load | <1t |
Transmission | Hydraulic |
Load and Unload Mode | Front Discharge |
Walking Mode | Wheeled |
Type | Small Loader |
After-Sales Service Provided | 1 Year |
Self Weight Bucket | 1500kg |
Engine Type | 3-Cylinder / 4-Cylinder |
Product Name | Mini Skid Steer Loader |
Key Words | Skid Steer Loader |
Tire(Track) Model | 23*8.5-15 |
Fuel Tank Capacity | 25L |
Drive Type | 4X4 Wheel Drive |
Max Speed | 9km/H |
Transport Package | Wooden Crates |
Specification | 2959*927*1900mm |
Trademark | DIG-DOG |
Origin | China |
HS Code | 8429510000 |
Production Capacity | 10000pieces/Year |
Packaging & Delivery
Package Size 2980.00cm * 960.00cm * 1950.00cm Package Gross Weight 1300.000kgProduct Description
Product Description
DIG-DOG WHEEL SKID STEER LOADERSDIG-DOG wheel skid steer loaders have a simple structure, good cost performance, low cost of use.The skid loaders are the international market best-selling classic products.The series has a compact design, a small host width, and have a good passing ability. Use the variable-amplitude working arm.Ensure a strong carrying capacity at a small width.The skid loaders are imported European and American hydraulic parts.The control all adopts the pilot servo system, control sensitive, reflect quickly, is the best choice for narrow space operation.Detailed Photos
Compact structure, motor movement suitable for narrow space operation, close the engine room lever control system;
Double throttle control, automatic leveling system,hydraulic braking.Compact structure, motor movement is suitable for narrow space operation;Close the engine room joystick control system;Dual-throttle control; automatic leveling system;Hydraulic brake.Feedback from customersProduct ParametersModel | WSL30 | WSL40 | WSL45 | WSL65 | WSL100 | WSL120 | ||
Operating load (kg) | 300 | 500 | 700 | 1050 | 1100 | 1200 | ||
Max Speed(km/h) | 9 | 10 | 12 | 12 | 12\18 | 12\18 | ||
Rated flux (L/min) | 37 | 60 | 62.5 | 75 | 75 | 75 | ||
High Flow Flux (L/min) | * | * | * | 120 | 140 | 140 | ||
Tire(track) model | 23×8.5-15 | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | ||
Rated power (Kw) | 18.4 | 37 | 37 | 55 | 74 | 103 | ||
Fuel tank capacity (L) | 25 | 60 | 70 | 75 | 90 | 90 | ||
self weight bucket (kg) | 1500 | 2300 | 2700 | 3500 | 3550 | 3600 | ||
Bucket capacity (m³) | 0.2 | 0.3 | 0.4 | 0.5 | 0.55 | 0.55 |
STAND ON MINI SKID STEER LOADERSCustomized AttachmentsAttachment function introduction 1,Material loading and unloading attachments (fork shovel, standard bucket, combination shovel, sieve shovel) 2,Municipal attachments (angled sweepers, closed sweepers, crushing hammers, vibratory compactors, milling machines, trenchers, snow pushers, snow throwers, ice breakers, vibratory ice breakers) 3,Construction attachments (excavators, mixers, disk trenchers, digging arms, bulldozers) 4,Logistics attachments (holding forks, tandem bars, soft pack clamps, crane hooks, side shifting forklifts) 5,Gardening and agricultural attachments (grass forks, tree removers, graders, lawn mowers, rototillers, augers)
Packaging & ShippingAbout UsDIG-DOG, Dig the world!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that
you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG have our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine. FAQ
What are the advantages of your brand?
Our factory is located in Jiangsu, China. We use high quality materials and components of famous international brands. Our design team works closely with our customers to handle any custom orders.
7-30 days after receiving the deposit.
